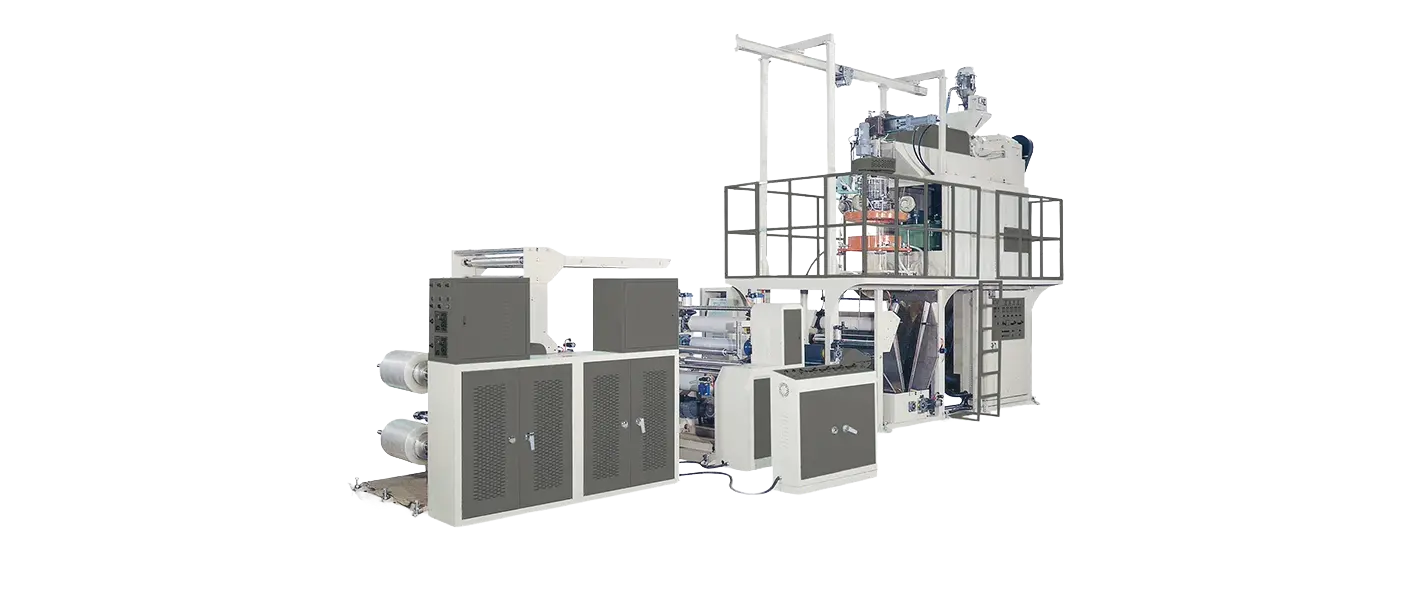

Clasificación: Máquina de Película Tubular y Extrudora de T-Die P.P
País: Taiwán
Teléfono: 886-6-5783420
Fax: 886-6-5783347
Persona de contacto: Chris Chang
- Extruding speed is control by inverter
- Screw and barrel made of special steel with nitrating treatment, grinding, and hard chrome plating, which durable for long time rotation.
- Rotary die which is processed by hard chrome plating. The water ring is made by Aluminum.
| Model | MGPP-45 | MGPP-55 | MGPP-65 | MGPP-75 |
| Applicable resin | P.P. granules | |||
| Thickness Range | 0.02 - 0.08 mm | |||
| Lay flat film width | 100 - 400 mm | 150 - 550 mm | 200 - 700 mm | 550 - 1000 mm |
| Output | 10 - 35 kg/hr | 20 - 50 kg/hr | 20 - 60 kg/hr | 20 - 100 kg/hr |
| Machine dimension | 4,000 (L) × 1,600 (W) × 3,400 (H) mm | 4,500 (L) × 2,000 (W) × 4,300 (H) mm | 6,360 (L) × 2,100 (W) × 4,700 (H) mm | 7,520 (L) × 2,200 (W) × 5,200 (H) mm |
| Net weight | ||||
| Required power | ||||
| Optional equipment | (1) 5TON chiller : 1 (2) 200 KG mixer with drier : 1 (3) Hydraulic Cylinder : 1 (4) Corona treatment : 1 (5) Double side embossing station : 1 (6) Double side winding device : 1 |
|||
| Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. | |||
