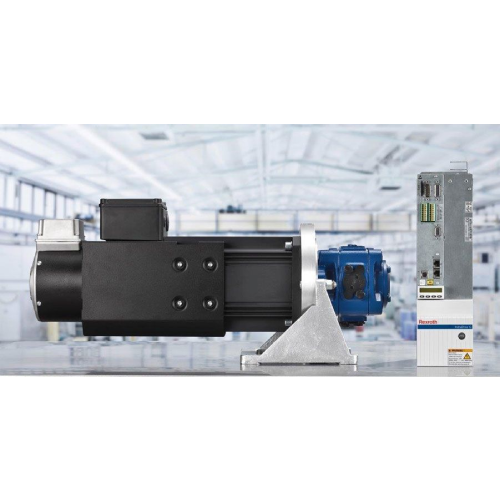

Modelo | Tamaño internacional | Volumen de disparo teórico | Fuerza de sujecion | Espacio entre barras de unión | Molde de apertura de golpe |
400 MBE | 4000H-2045 | 1502 | 400 | 700x700 | 1500 |
500 MBE | 5000H-2862 | 1910 | 500 | 780x780 | 1750 |
600 MBE | 6000H-4462 | 2767 | 600 | 880x880 | 1800 |
850 MBE | 8500H-4971 | 3613 | 850 | 1000x1000 | 2000 |
1050 MBE | 10500H-7746 | 4752 | 1050 | 1100x1100 | 2350 |
1450 MBE | 14500H-9614 | 7433 | 1450 | 1300x1300 | 2460 |
1850 MBE | 18500H-15369 | 11486 | 1850 | 1600x1600 | 2600 |
2300MBE | 23000H-25143 | 18158 | 2300 | 1800x1800 | 2800 |
DIRECT CLAMPING FORCE BUILT UP BY MULTIPLE CYLINDERS

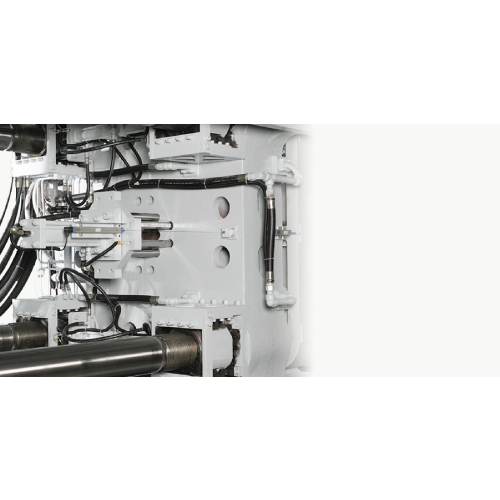

The actuator of the clamping force is installed on the fixed platen of the conventional two platens injection molding machine. The design of the MBE model has four sets of traveling cylinders inside of the movable platen to close the mold and to build up the clamping force at the center of the platen. Thus, the force is distributed evenly on the platen and creates zero deflection when the injection force activates. The clamping force makes a full release before the mold opens, so there is no issue of failed opening such as a mechanical deformation of the toggle under the conditions of a long cycle. The standard feature of the proportional valve with LVDT feedback achieves high precision of mold open-end position.
CAMBIO FLEXIBLE A CARRERA DE APERTURA Y GROSOR DE MOLDE
Está disponible una carrera de apertura larga para proporcionar una alta flexibilidad para un molde que requiere un mayor espesor y se puede extender si es necesario. La altura máxima del molde, la luz del día o la carrera del eyector se pueden revisar bajo pedido especial. Los cilindros transversales dobles están instalados en la esquina opuesta de la platina fija para acortar el ciclo de secado y facilitar el acceso al área de purga y la boquilla.
