ABA 3-Layer Co-Extrusion

Clasificación: ABA/2/3/4/5/7-Layer Co-Extrusión

Applications: Agriculture Agricultural Films

CHYI YANG INDUSTRIAL CO., LTD.

País: Taiwán

Teléfono: 886-3-328-8686

Fax: 886-3-328-3737

Persona de contacto: Renee Kuo

Consulta Ahora

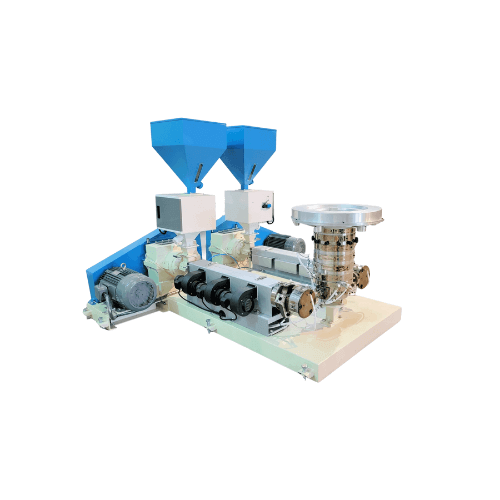

CHYIYANG is ABA 3-Layer Co-Extrusion manufacturer, ABA 3-Layer Co-Extrusion, ABA Co-Extrusion Machine, It produces uniform film for food & milk package etc. Screw is Bi-metal & precise die More than 50 years experience about ABA Co-Extrusion.

MODEL NO.	ABA-MDP-45	ABA-MDP-50	ABA-MDP-55	ABA-MDP-65
Screw Diameter (mm)	45 x 2 sets	50 x 2 sets	55 x 2 sets	45 x 2 sets
Roller Width (mm)	900	1000	1350	1650
*Output (kg/hr.)**	40-90	50-110	50-140	60-190
Film Thickness (mm)	HDPE: 0.008-0.06mm LDPE: 0.025-0.15mm
Drive Motor (HP)	20 x 2 set	25 x 2 sets	30 x 2 sets	40 x 2 sets
Die Diameter (mm)	70 & 110	80 & 120	HD 180 & 200 LD 300	HD 220 & 250 LD 400
Heating Zone	12 zones	12 zones	12 zones	14 zones
