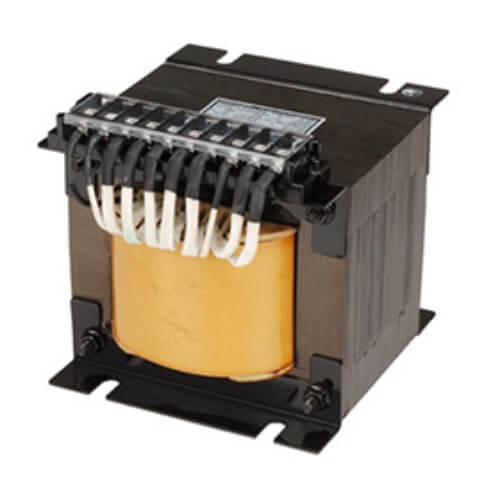

A-4 Single Phase Autotransformer (UL Certified Products)

A-4 Single Phase Autotransformer (UL Certified Products)
Clasificación: Single Phase Dry Type Transfomer
CNE ELECTRICAL CO., LTD.
CNE ELECTRICAL CO., LTD.
País: Taiwan
Teléfono: 03-341-1860
Fax: 03-341-1826
Persona de contacto:
Consulta Ahora
Product Dry Type Transformer IP00 Transformer without case
Phase Single Phase Transformer IP20 Transformer with case
Type Autotransformer
Copper Winding		 Ambient Temperature -10 ~ +40°C
Frequency 50/60Hz Humidity 45 ~ 85%RH
Capacity 50VA ~ 500kVA Altitude Under 1000M
Polarity Subtractive polarity Inspection Insulation resistance test, Dielectric strength test, Protective earthing continuity test,Induced high voltage test, Full load test,Function test
CE Certification LVD 2014/35/EU
IEC/EN61558-1:2005+A1:2009
EN61558-2-13：2009
EMC 2014/30/EU
CE Insulation Class A(105°C), E(120°C), B(130°C),
F(155°C), H(180°C)
UL Certification E207224
UL Insulation Class B(130°C), H(180°C)
