Heavy Duty Granulators-GXC Series

Clasificación: Granulator/Crusher

GENOX RECYCLING TECH CO., LTD.

País: China

Teléfono: 86-20-66851345

Persona de contacto: Jaime Jiang

Consulta Ahora

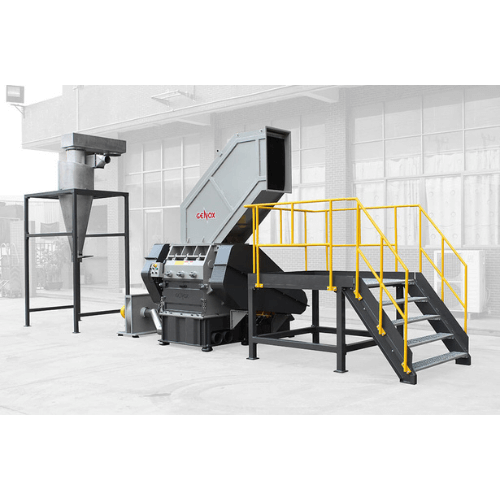

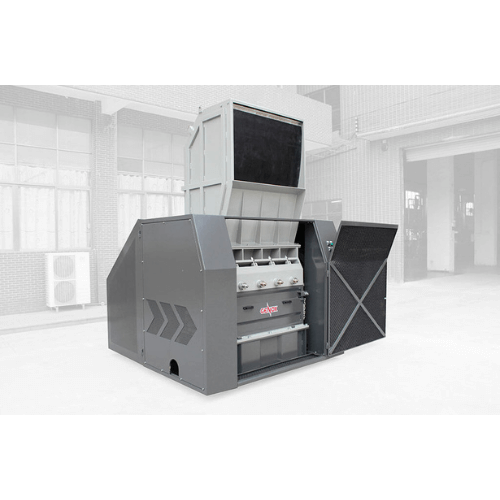

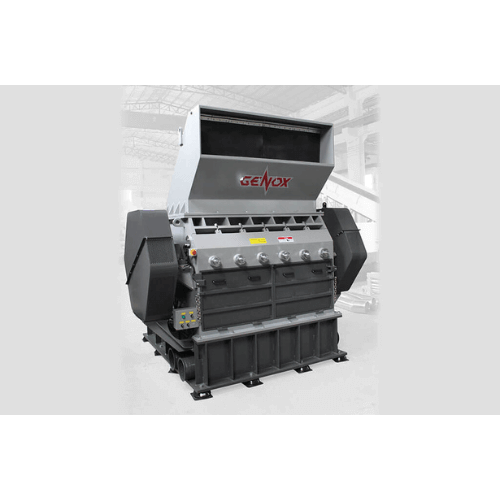

GXC Series Heavy Duty Granulators with power ratings of 55kw to 315kw are designed for high throughput processing. With a variety of rotor configurations available, these granulators have a wide range of applications including; hollow and voluminous materials (i.e. plastic drums, crates and chairs), flexible materials such as films, woven bags and rubber, tougher materials such as profiles, thick sheets, and other general plastics.

Plastics – Mouldings, Profiles, Films etc.
Rubber – Tire Rubber, Relaim Rubber Products etc.
Paper & Cardboard – Confidential Documents, Production Waste, Packaging Materials etc.
Copper Cable – Household, Telecoms and Industrial Cables including S.W.A.
Textiles – Carpet (Rolls & Tiles) etc.
Foam – Production Waste etc.

Strong welded construction from heavy gauge steel plate.
Inclined, split cutting chamber design.
Oversized, outboard spherical rotor bearings – prevents bearing damage due to product migration.
Precision machined rotors (Forward set V-Rotor as standard).
Manual, electric and hydraulic chamber opening mechanisms - quick access to the cutting chamber for maintenance and machine clean downs.

Replaceable wear plates at either end of the rotor shaft.
Stand Alone Electrical Control Panel - using quality Schneider components and Siemens PLC’s.
Tested, Approved and Certified to the applicable CE safety standards.

Model	GXC800	GXC1200	GXC1200T	GXC1600T	GXC1200G	GXC1600G	GXC2000G
Dimension (L x W x H) (mm)	2166 × 1802 × 3141	2166 × 2202 × 3141	2474 × 2257 × 3403	2496 × 2666 × 3373	2603 × 2503 × 3902	2650 × 2870 × 3900	2920 × 3304 × 3877
Hopper Opening (L x H) (mm)	752 × 820	1152 × 820	1152 × 1020	1552 × 1020	1200 × 1113	1560 × 1150	2014 × 1146
Rotation Diameter (mm)	Ø 502	Ø 502	Ø 660	Ø 662	Ø 808	Ø 800	Ø 800
Operation Length (mm)	816	1216	1216	1616	1216	1600	2020
Rotation Speed (RPM)	520	520	520	520	460	480	460
Screen Size(mm)	Ø 12	Ø 12	Ø 12	Ø 12	Ø 12	Ø 12	Ø 12
Number of Rotor Knives	5×2	5×2	7×2	7×4	9×2	9×4	9×4
Number of Counter Knives	1+2	2+4	2+4	2+4	2+4	3×2	4+8
Main Drive (kW)	55	75	90	132	110	160~250	220
Hydraulic Power Pack(kW)	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Weight(kg)	Approx 4103	Approx 5068	Approx 6891	Approx 9802	Approx 10242	Approx 11800	Approx 14347
