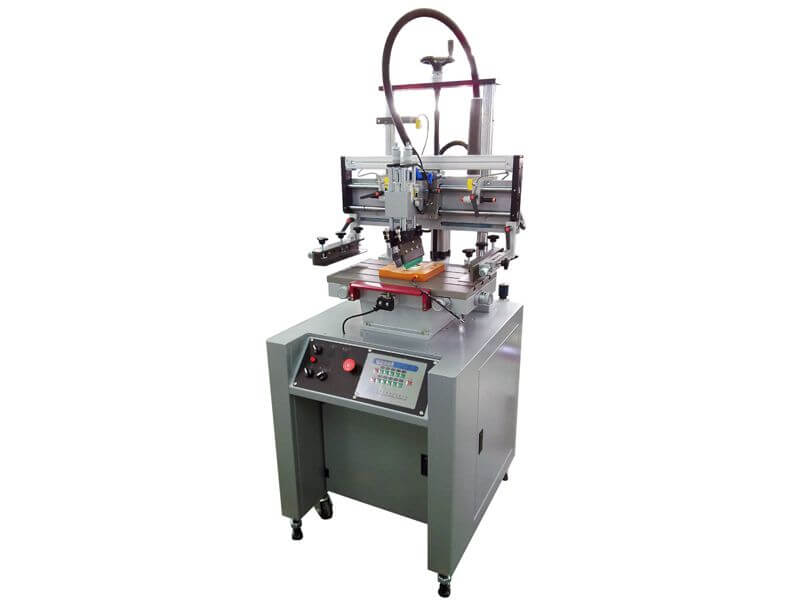

Name: Flat Screen Printing Machine
Brand: Hanky & Partners (Taiwan) Ltd.

Clasificación: Printing Machine

Applications: Artículos para el hogar y de consumo Electrónica, electricidad y óptica Deportes y ocio Cajas y contenedores de almacenamiento Componentes electrónicos Pelotas de golf

Hanky & Partners (Taiwan) Ltd.

País: Taiwan

Teléfono: +886-91-687-818

Persona de contacto: 譚寶豪

Consulta Ahora

Model	TP-430FS	TP-430FVS	TP-600FS	TP-600FVS
Print Head Movement - Left/Right	Air Cylinder
Print Head Movement - Up/Down	Air Cylinder
T-Slot Table Size	300*500mm	X	500*700mm	X
Vacuum Table Size	X	300*500mm	X	500*700mm
Vacuum Area	X	230*420mm	X	420*600mm
Maximum Printing Area	220*300mm		400*560mm
Maximum Screen Frame Size	400*550mm		600*900mm
Screen Frame Height	15-25mm		15-25mm
Workpiece Thickness	0-150mm		0-170mm
Maximum Capacity	1200pcs/hour		800pcs/hour
Voltage	110/220/240V AC. 50/60 Hz
Power Consumption	0.25Kw		0.3Kw
Compressed Air	5~7kg/c㎡
Air Consumption	6.2L/Cycle		9.6L/Cycle
Machine Dimensions (WDH)	7070170cm		11083170cm
Machine Weight	160 kgs	170kgs	180kgs	195kgs

Product: Flat Screen Printing Machine

Models: TP-430FS, TP-430FVS, TP-600FS, TP-600FVS

Suitable for flat films, keys, plastic housings, and similar workpieces.
