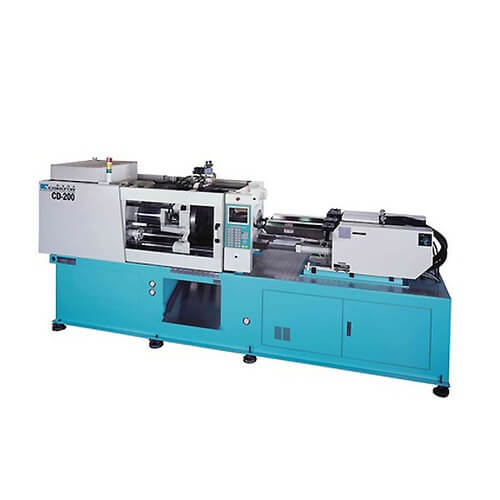

CD-200 Two Color Injection Molding Machine

CD-200 Two Color Injection Molding Machine
Clasificación: Two Color Injection Molding Machines
JOEHOME PRECISION CO., LTD.
JOEHOME PRECISION CO., LTD.
País: Taiwan
Teléfono: 07-7517283
Persona de contacto: Kevin
Consulta Ahora
Item Unit Model : CD-200  ( F )   Model : CD-200  ( R )
INJECTION UNIT►
SCREM DIA. mm 32 36 40 32 36 40
INJ. VOLUME cm3 / shot 101 127 157 101 127 157
INJ. CAPACITY g / shot (ps) 96 120 150 96 120 150
PLASTICIZING RATE kg / hr (ps) 28 38 52 28 38 52
INJ. PRESS kgf / cm2 2390 1890 1530 2390 1890 1530
INJ. RATE cm3 / sec 127 160 198 127 160 198
SCREW STROKE mm 125
SCREW SPEED rpm 0 ~ 240
NOZZLE STROKE mm 280
NOZZLE FORCE mm tonf (kn) 3.5 (34)
NOZZLE DISTANCE mm 330
CLAMPING UNIT►
CLAMP FORCE tonf (kn) 200 (1960)
CLAMP STROKE mm 500
MIN. THICKNESS mm 200
DAYLLGHT OPEN mm 700
TIE BAR DISTANCE mm 530 x 530 (784)
PLATEN SIZE mm 780 x 780 (720)
EJECTOR STROKE mm 142 ( X / L ~ 75mm )
EJECTOR FORCE tonf (kn) 4 (39) * 2 piece
OPENING MOLD FORCE tonf (kn) 9 (88)
OTHER►
MAX.SYS.PRESS kgf / cm2 175
MOTOR POWER kw (hp) / pole 30 (40) / 6
HEATER CAPACITY kw 7.4 + 7.4 = 14.8
HYD.OIL REQ. Liter 580
MACHINE SIZE (L x W x H) M 5.7 x 1.5 x 1.95
FLOOR SPACE M 4.5 x 1.3
MACHINE WEIGHT ton 9

Features:

  1. Two independent injection unit can reduce the cycle time.
  2. Hydraulic clamping unit, the mould deformation is very less and the injection moulding is more accuracy.
  3. Linear transducer for the injection, clamping position control.
  4. Screw and barrel made by ACM2 material process with nitride for high ware resist.
  5. Four heating zone controller by PID the accuracy can reach to ±1℃
  6. Two independent ejector designs for easy operation.
  7. Advance turntable mechanism design for fast moving and precision positioning.
  8. Heavy duty turntable (CD-200 nay reach too 1000kg) to ensure the mold do not falling during operation. High precision and speed turntable, the speed can reach to 2 second/180
  9. Advance Japan made star controller with 10*color LCD screen for easy operation.

Controller

  • Programmable "STAR" controller, made in Japan.
  • High resalution display screen with various function display.
  • SPC parameter is easy to set up & modify.
  • Monitor operation procedure.
  • Instart display operation & operation time.
  • Open, close mode & ejection.
  • Production management.
  • 4 steps temperature setup, expand to 6 steps.
  • Oil temperature display in 1 section.
  • Oil prehcat function.
  • Thermo control curve.
  • 100 SPC recard.
  • SPC precision comparison.
  • Internal storage of 60 machine setup.
  • Display temperature predision scale.
  • Pressure curve*, Speedcurve*.
  • IC memory card to expandstorage of machines setup*.

Programmable computer unit:

High efficiency and easy-to-use display

10" color screen (option)
  • The computer controller, made in Japan with LCD display, is easy to use, operate, andset.
  • It is quick and simple to call up the program to the LCD display for modification.



Injection/charge setting apge
Injection/charge setting apge
Machine status page
Temperature setting page

We can offer, you the customer, a wide range of accessories to complement your injection machine.
These accessories are available locally and are manufactured to the highest quality.
Please see below for what we can supply.

(Please Note: These accessories are not sold separately, only with a Creator Machine)

  • Auto Loaders
  • Hopper Dryers
  • Dust Collectors
  • Robots
  • Moulds
  • Granulators
  • Conveyors
  • Chillers
  • Dehumidifiers
  • Mould Temperature Controllers
  • Oven Dryers
  • Masterbatch
