Sandwich Folding Machine With 1 Colors Rotogravure Printing

Clasificación: Rebobinado y Máquina de Corte y Sellado

MING JILEE ENTERPRISE CO., LTD.

País: Taiwán

Teléfono: 886-6-5783420

Fax: 886-6-5783347

Persona de contacto: Chris Chang

Consulta Ahora

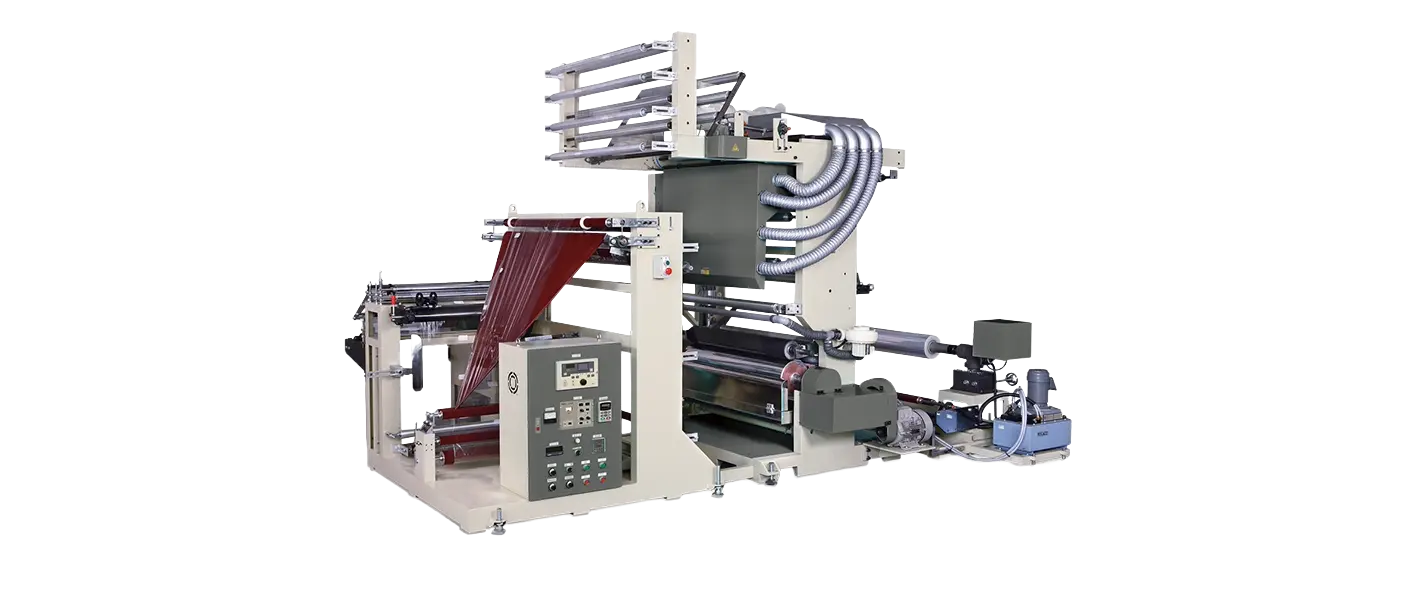

The MGA-27B-1000+GB-1060A is Ming Jilee's sandwich folding machine with 1-color rotogravure printing, built to fold CPP and BOPP film into sandwich-style sheets while printing a single color in line. It is part of the MGA-27B series, which also includes the -1200, -1400 and -1600 models.

Working width scales from 1,000 (W) mm on the base MGA-27B-1000+GB-1060A up to 1,200 (W) mm, 1,400 (W) mm and 1,600 (W) mm on the larger series models, all running at the same output range of 10 - 120 Meter/min, so the width can be sized to the job without changing production speed.

Model	MGA-27B-1000+GB-1060A	MGA-27B-1200	MGA-27B-1400	MGA-27B-1600
Feed material	CPP & BOPP	CPP & BOPP	CPP & BOPP	CPP & BOPP
Size	1,000 (W) mm	1,200 (W) mm	1,400 (W) mm	1,600 (W) mm
Output	10 - 120 Meter/min	10 - 120 Meter/min	10 - 120 Meter/min	10 - 120 Meter/min
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
