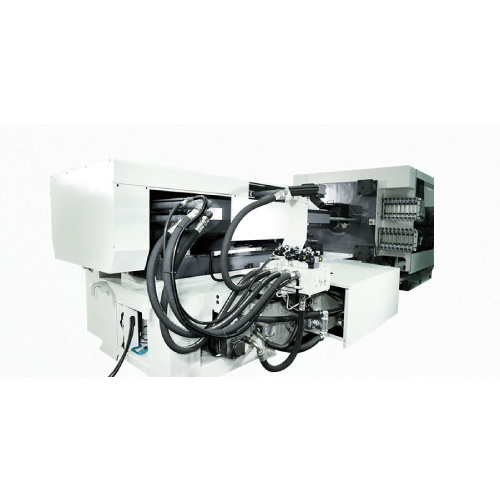

Modelo | Tamaño internacional | Volumen de inyección teórico | Fuerza de sujecion | Espacio entre barras de unión | Movimiento de apertura del molde |
CX-60 | 600H-167 | 97 | 60 | 330x330 | 320 |
CX-100 | 1000H-387 | 226 | 100 | 380 x 380 | 370 |
CX-130 | 1300H-517 | 318 | 130 | 430x430 | 410 |
CX-160 | 1600H-764 | 442 | 160 | 500 x 500 | 490 |
CX-200 | 2000H-1078 | 594 | 200 | 560x560 | 550 |
CX-250 | 2500H-1400 | 778 | 250 | 610x610 | 600 |
CX-300 | 3000H-1727 | 995 | 300 | 680x680 | 660 |
CX-350 | 3500H-2101 | 1251 | 350 | 730x730 | 710 |
CX-450 | 4500H-3079 | 1885 | 450 | 810 x 810 | 780 |
CX-550 | 5500H-4316 | 2704 | 550 | 880x880 | 860 |
CX-700 | 7000H-5437 | 3261 | 700 | 960 x 960 | 950 |
CX-950 | 9500H-8472 | 4752 | 950 | 1160 x 1160 | 1250 |
CX-1250 | 12500H-12672 | 7433 | 1250 | 1360 x 1360 | 1500 |
CX-1600 | 16000H-16810 | 11486 | 1600 | 1560x1460 | 1700 |

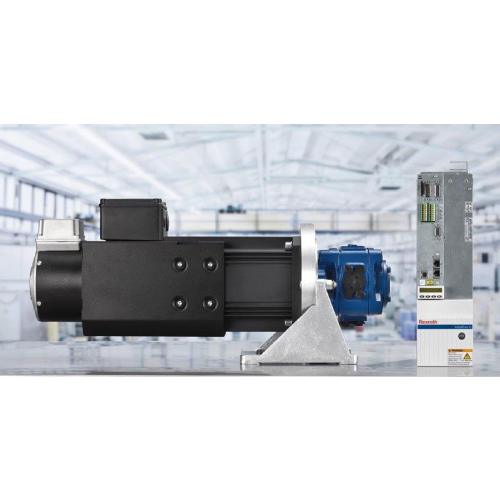

DISEÑO DE PALANCA DE ALTA VELOCIDAD DE CINCO PUNTOS
Diseño optimizado de palanca vertical de alta velocidad de 5 puntos. Actualización de la ampliación de palanca y la relación entre la carrera del cilindro de sujeción y la carrera de apertura, por lo que el ciclo de secado se reduce en más del 30%.
El tamaño de la platina y el espacio libre de la barra de unión se amplían para más producciones de moldes de inyección.
STRUCTURAL REINFORCED PLATENS DESIGN

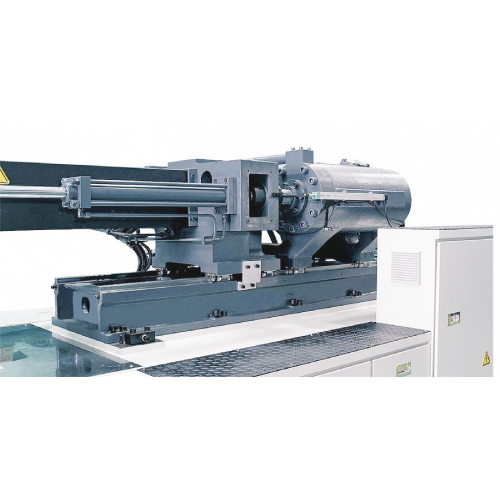

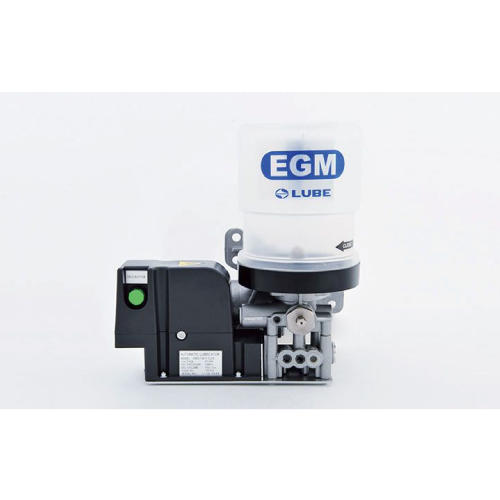

The movable platen has a box-shaped design with a T slot and a tapped mounting layout; the thickness and rigidity of the platen are both strengthened to minimize its deformation. A self-lubricated compound plate is supported at the bottom to reduce the friction of the plate with the steel tape. The layout of the platen mounting follows Euromap standards. Optional features such as the installation of a proportional valve for positional control or an ejector on the fly are also available.
