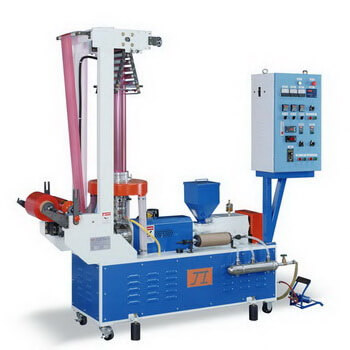

Pequeña máquina de inflado (TINY-28)

MODEL

TINY-25

TINY-28

GF-HMM28

FEATURE

MATERIAL TO BE USED

HD/LD/LLDPE RESIN

APPLICATION

LAB USE & COLOR TESTING

SMALL & THIN FILM

MAX. FILM WIDTH

120 mm

200 mm

350 mm

MAX. EXTRUSION OUTPUT

5 KG/HR

8 KG/HR

16 KG/HR

EXTRUDER

SCREW DIAMETER

25 mm

28 mm

32 mm

BLOWN FILM DIES

30 mm

40 mm

50 mm

CONTROLPANEL

TEMPERATURE CONTROL

2 ZONES

3 ZONES

3 ZONES

TAKE-UP UNIT

ROLLER WIDTH

200 mm

300 mm

400 mm

WINDING UNIT

TYPE

SINGLE STATION, SURFACE FRICTION TYPE

EFFECTIVE WIDTH

135 mm

200 mm

350 mm

Specifications of the machine could be changed according to your requirements.
