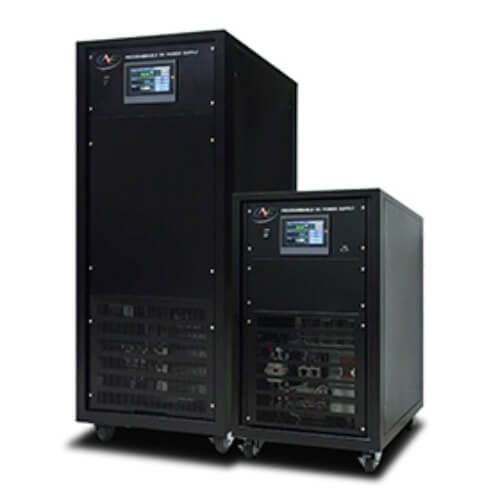

F-5 ADG Series Programable DC Power Supply

Clasificación: C Source Frequency Converter

CNE ELECTRICAL CO., LTD.

País: Taiwan

Teléfono: 03-341-1860

Fax: 03-341-1826

Persona de contacto: Mr. Allen Chen

Consulta Ahora

Wide output voltage range: with maximum voltage up to 2000V, ideal for renewable energy, smart grid, and Electric Vehicle (EV) related applications
High Efficiency and Power Factor: up to 90% efficiency and power factor
High Output Power: up to 100kW in one chassis with high power density
Fast Transient Response Time: <4~12ms
12 Different Output Voltage Ranges & 41 Models
Standard RS485 interface with Modbus compatibility and optional RS232 and GPIB interfaces
CV and CC Modes
Programming Sequence Function: STEP and GRADUAL modes allow users to easily set sequences of start/ end voltage, run time and current for testing purposes.
4.7” Touch Screen Display for Easy Operation
Remote Sense for Line Drop Compensation
Comprehensive Protection: Input OVP/UVP, output OVP/OCP, OTP

ADG-L SPECIFICATIONS

Model	ADG-L-160-25	ADG-L-330-12	ADG-L-330-25-4	ADG-L-160-50	ADG-L-330-24	ADG-L-330-50-8	ADG-L-660-12
Output Power	4kW			8kW
INPUT
Input Voltage	1Φ 2W+G 187-264 Vac			1Φ 2W+G 187-264 Vac 3Φ4W+G 340-460 Vac
Input Current	24A			1Φ : 48A 3Φ : 24A
Input Frequency	47 Hz - 63 Hz
Power Factor	≥ 0.99 at max. power
OUTPUT
Voltage	0 ~ 160V	0 ~ 330V	0 ~ 330V	0 ~ 160V	0 ~ 330V	0 ~ 330V	0 ~ 660V
Current	0 ~ 25A	0 ~ 12A	0 ~ 25A	0 ~ 50A	0 ~ 24A	0 ~ 50A	0 ~ 12A
Voltage Ripple (rms)	≤ 0.15% F.S.	≤ 0.08% F.S.	≤ 0.08% F.S.	≤ 0.15% F.S.	≤ 0.08% F.S.	≤ 0.08% F.S.	≤ 0.08% F.S.
Voltage Ripple (peak to peak)	≤ 1.6% F.S.	≤ 0.8% F.S.	≤ 0.8% F.S.	≤ 2.5% F.S.	≤ 1.6% F.S.	≤ 1.6% F.S.	≤ 0.8% F.S.
Voltage Line Regulation	≤ 0.03% F.S.
Voltage Load Regulation^*1	≤ 0.08% F.S.	≤ 0.05% F.S.	≤ 0.05% F.S.	≤ 0.08% F.S. + 80mV	≤ 0.08% F.S. + 80mV	≤ 0.08% F.S. + 80mV	≤ 0.05% F.S.
Current Ripple (rms)	≤ 0.15% F.S.	≤ 0.25% F.S.	≤ 0.15% F.S.	≤ 0.15% F.S.	≤ 0.25% F.S.	≤ 0.15% F.S.	≤ 0.5% F.S.
Current Line Regulation	≤ 0.05% F.S.
Current Load Regulation	≤ 0.10% F.S.	≤ 0.10% F.S.	≤ 0.10% F.S.	≤ 0.2% F.S.	≤ 0.2% F.S.	≤ 0.2% F.S.	≤ 0.25% F.S.
Transient Response^*2	≤ 3ms	≤ 3ms	≤ 3ms	≤ 3ms	≤ 3ms	≤ 3ms	≤ 3.5ms
Efficiency	≥ 90% at max. power
Slew Rate^*3	Rise Time	≤ 25ms	≤ 35ms	≤ 35ms	≤ 25ms	≤ 40ms	≤ 40ms	≤ 60ms
	Fall Time (Full Load)	≤ 30ms	≤ 40ms	≤ 40ms	≤ 35ms	≤ 45ms	≤ 45ms	≤ 45ms
	Fall Time (No Load)	≤ 10s
Programming & Measurement
Voltage Programming Accuracy	≤ 0.15%F.S.+100mV
Voltage Measurement Accuracy	≤ 0.15%F.S.+100mV			≤ 0.15%F.S.+100mV			≤ 0.15%F.S. +100mV
Voltage Resolution	100mV
Current Programming Accuracy	≤ 0.4%F.S. +60mA
Current Measurement Accuracy	≤ 0.3%F.S.+60mA			≤ 0.3%F.S.+60mA			≤ 0.4%F.S. +60mA
Current Resolution	10mA
General Specs.
Interfaces	Standard: RS-485/RS-232 (Modbus) & Analog Optional: Ethernet/USB/RS-485/RS-232 (SCPI) or GPIB
Remote sense compensation	≤ 5V
Operating Temperature	0° C ~ 40° C
Storage Temperature	-20° C ~ 70° C
Protections	OVP, OCP, OPP, OTP, Vin OV, Vin UV, LDC OV Vin LV, Phase Fail, Fan Fail
OVP Range	0~110% F.S.
OCP Range	0~110% F.S.
Dimension (HxWxD)	132 x 442 x 756 mm / 5.20 x 17.40 x 29.76 inches
Weight	4kW: approx. 26kg / 57.32lbs			8kW: approx. 33kg / 72.75lbs

Model	ADG-L-660-25-8	ADG-L-160-75	ADG-L-330-36	ADG-L-330-75-12	ADG-L-500-24	ADG-L-1000-12	ADG-L-1000-25-12
Output Power	8kW	12kW	12kW	12kW	12kW	12kW	12kW
INPUT
Input Voltage	1Φ 2W+G 187-264 Vac 3Φ 4W+G 340-460 Vac			1Φ 2W+G 187-264 Vac 3Φ 3W+G 187-264 Vac 3Φ 4W+G 340-460 Vac
Input Current	1Φ : 48A 3Φ : 24A			1Φ : 72A 3Φ Δ : 42A 3Φ Y : 23A
Input Frequency	47 Hz - 63 Hz
Power Factor	≥ 0.99 at max. power
OUTPUT
Voltage	0~660V	0~160V	0~330V	0~330V	0~500V	0~1000V	0~1000V
Current	0~25A	0~75A	0~36A	0~75A	0~24A	0~12A	0~25A
Voltage Ripple (rms)	≤ 0.08% F.S.	≤ 0.15% F.S.	≤ 0.08% F.S.	≤ 0.08% F.S.	≤ 0.1% F.S.	≤ 0.06% F.S.	≤ 0.06% F.S.
Voltage Ripple (peak to peak)	≤ 0.8% F.S.	≤ 1.6% F.S.	≤ 1% F.S.	≤ 1% F.S.	≤ 0.8% F.S.	≤ 0.5% F.S.	≤ 0.5% F.S.
Voltage Line Regulation	≤ 0.03% F.S.
Voltage Load Regulation ^*1	≤ 0.05% F.S.	≤ 0.25% F.S.	≤ 0.25% F.S.	≤ 0.25% F.S.	≤ 0.05% F.S.	≤ 0.05% F.S.	≤ 0.05% F.S.
Current Ripple (rms)	≤ 0.25% F.S.	≤ 0.1% F.S.	≤ 0.15% F.S.	≤ 0.1% F.S.	≤ 0.25% F.S.	≤ 0.5% F.S.	≤ 0.25% F.S.
Current Line Regulation	≤ 0.05% F.S.
Current Load Regulation	≤ 0.25% F.S.	≤ 0.1% F.S.			≤ 0.15% F.S.
Transient Response ^*2	≤ 3.5ms	≤ 4ms			≤ 3ms
Efficiency	≥ 90% at max. power
Slew Rate ^*3	Rise Time	≤ 60ms	≤ 25ms	≤ 35ms		≤ 45ms	≤ 90ms
	Fall Time (Full Load)	≤ 45ms	≤ 35ms	≤ 45ms		≤ 30ms	≤ 40ms
	Fall Time (No Load)	≤ 10s
Programming & Measurement
Voltage Programming Accuracy	≤ 0.15% F.S. + 100mV
Voltage Measurement Accuracy	≤ 0.15% F.S. + 100mV	≤ 0.15% F.S. + 100mV			≤ 0.15% F.S. + 150mV
Voltage Resolution	100mV
Current Programming Accuracy	≤ 0.4% F.S. + 60mA
Current Measurement Accuracy	≤ 0.4% F.S. + 60mA	≤ 0.4% F.S. + 60mA			≤ 1% F.S. + 150mA
Current Resolution	10mA
General Specs.
Interfaces	Standard: RS-485/RS-232 (Modbus) & Analog Optional: Ethernet/USB/RS-485/RS-232 (SCPI) or GPIB
Remote sense compensation	≤ 5V
Operating Temperature	0°C ~ 40°C
Storage Temperature	-20°C ~ 70°C
Protections	OVP, OCP, OPP, OTP, Vin OV, Vin UV, LDC OV, Vin LV, Phase Fail, Fan Fail
OVP Range	0~110% F.S.
OCP Range	0~110% F.S.
Dimension (HxWxD)	132 x 442 x 756 mm / 5.20 x 17.40 x 29.76 inches
Weight	8kW: approx. 33kg / 72.75lbs 12kW: approx. 40kg / 88.18lbs

30kW	Output Voltage	Output Current	Voltage Ripple (RMS)	Voltage Noise (Peak)	Voltage Slew Rate ^*1
ADG-P-40-750	0~40V	0~750A	≤ 0.5%	≤ 3.7%	≤ 65ms
ADG-P-60-500	0~60V	0~500A
ADG-P-100-300	0~100V	0~300A
ADG-P-200-150	0~200V	0~150A	≤ 0.26%	≤ 2%	≤ 60ms
ADG-P-240-125	0~240V	0~125A	≤ 0.19%	≤ 2%	≤ 85ms
ADG-P-320-94	0~320V	0~94A	≤ 0.16%	≤ 0.88%	≤ 85ms
ADG-P-400-75	0~400V	0~75A	≤ 0.13%		≤ 115ms
ADG-P-500-60	0~500V	0~60A	≤ 0.13%
ADG-P-640-47	0~640V	0~47A	≤ 0.109%	≤ 0.77%
ADG-P-800-38	0~800V	0~38A	≤ 0.07%	≤ 0.29%	≤ 280ms
ADG-P-1000-30	0~1000V	0~30A	≤ 0.05%	≤ 0.27%
ADG-P-1600-18	0~1600V	0~18A	≤ 0.08%	≤ 0.4%
50kW	Output Voltage	Output Current	Voltage Ripple (RMS)	Voltage Noise (Peak)	Voltage Slew Rate ^*1
ADG-P-40-1250	0~40V	0~1250A	≤ 0.5%	≤ 3.7%	≤ 65ms
ADG-P-60-834	0~60V	0~834A
ADG-P-100-500	0~100V	0~500A
ADG-P-200-250	0~200V	0~250A	≤ 0.26%	≤ 2%	≤ 60ms
ADG-P-240-208	0~240V	0~208A	≤ 0.19%	≤ 2%	≤ 85ms
ADG-P-320-156	0~320V	0~156A	≤ 0.16%	≤ 0.88%	≤ 85ms
ADG-P-400-125	0~400V	0~125A	≤ 0.13%		≤ 115ms
ADG-P-500-100	0~500V	0~100A	≤ 0.13%
ADG-P-640-78	0~640V	0~78A	≤ 0.109%	≤ 0.77%
ADG-P-800-63	0~800V	0~63A	≤ 0.07%	≤ 0.29%	≤ 280ms
ADG-P-1000-50	0~1000V	0~50A	≤ 0.05%	≤ 0.27%
ADG-P-1600-31	0~1600V	0~31A	≤ 0.08%	≤ 0.4%
75kW	Output Voltage	Output Current	Voltage Ripple (RMS)	Voltage Noise (Peak)	Voltage Slew Rate ^*1
ADG-P-40-1875	0~40V	0~1875A	≤ 1.3%	≤ 7%	≤ 120ms
ADG-P-60-1250	0~60V	0~1250A	≤ 1.5%	≤ 5%
ADG-P-100-750	0~100V	0~750A	≤ 1.5%	≤ 5%
ADG-P-320-234	0~320V	0~234A	< 0.1%	< 0.65%	≤ 90ms
ADG-P-640-117	0~640V	0~117A	≤ 0.1%	≤ 0.35%	≤ 120ms
ADG-P-1000-75	0~1000V	0~75A	≤ 0.2%	≤ 0.8%	≤ 130ms
ADG-P-1600-47	0~1600V	0~47A	≤ 0.1%	≤ 0.5%	≤ 300ms
100kW	Output Voltage	Output Current	Voltage Ripple (RMS)	Voltage Noise (Peak)	Voltage Slew Rate ^*1
ADG-P-40-2500	0~40V	0~2500A	≤ 1.3%	≤ 7%	≤ 120ms
ADG-P-60-1666	0~60V	0~1666A	≤ 1.5%	≤ 5%
ADG-P-100-1000	0~100V	0~1000A	≤ 1.5%	≤ 5%
ADG-P-320-312	0~320V	0~312A	< 0.1%	< 0.65%	≤ 90ms
ADG-P-640-156	0~640V	0~156A	≤ 0.1%	≤ 0.35%	≤ 120ms
ADG-P-1000-100	0~1000V	0~100A	≤ 0.2%	≤ 0.8%	≤ 130ms
ADG-P-1600-63	0~1600V	0~63A	≤ 0.1%	≤ 0.5%	≤ 300ms

*1 For output voltage change from 5% to 90% at maximum power after output softstart.
* Voltage ripple and noise specs are under full scale.

30kW	ADG-P-40-750	ADG-P-60-500	ADG-P-100-300	ADG-P-200-150	ADG-P-240-125	ADG-P-320-94
50kW	ADG-P-40-1250	ADG-P-60-834	ADG-P-100-500	ADG-P-200-250	ADG-P-240-208	ADG-P-320-156
AC Input	Voltage	3Φ3W + G 380Vac ± 15% (Option: 200V/208V/480V)
	Frequency	47-63Hz
	Power factor	≥ 0.9 at maximum power
DC Output	Output Voltage	40V	60V	100V	200V	240V	320V
	Output Current (30kW)	750A	500A	300A	150A	125A	94A
	Output Current (40kW)	1000A	666A	400A	200A	166A	125A
	Output Current (50kW)	1250A	834A	500A	250A	208A	156A
	Line Regulation	< 0.3%			< 0.1%
	Load Regulation	< 0.3%			< 0.065%	< 0.104%	< 0.14%
Measurement	Transient Response ^*2	≤ 4-12ms
	Voltage Accuracy	0.5% F.S.
	Voltage Resolution	0.1V
	Current Accuracy	0.5% F.S.
	Current Resolution	0.1A
Protection	Type	Vin OVP, Vin UVP, OVP, OCP, OTP
	OVP Range	5% - 115% from front panel
	OCP Range	5% - 115% from front panel
General	Efficiency	≥ 87% at maximum power			≥ 90% at maximum power
	Remote Interface	RS-485 (Opt. GPIB / RS-232 / Analog)
	Operational Temperature	0°C - 40°C
	Storage Temperature	-20°C - 70°C
	Isolation	Input to Enclosure: 2000VAC
	Dimension (H×W×D)	380V Input : 1050 x 600 x 800 (mm) / 41.4 x 23.7 x 31.5(inch) 220/200V/480V Input : 1385 x 600 x 800 (mm) 54.5 x 23.7 x 31.5(inch)
	Weight	380V Input : approx. 225 kg / 497 lbs 200V/208V/480V Input : approx. 412 kg / 909 lbs			380V Input : approx. 187 kg / 413 lbs 200V/208V/480V Input : approx. 367 kg / 810 lbs

30kW	ADG-P-400-75	ADG-P-500-60	ADG-P-640-47	ADG-P-800-38	ADG-P-1000-30	ADG-P-1600-18
50kW	ADG-P-400-125	ADG-P-500-100	ADG-P-640-78	ADG-P-800-63	ADG-P-1000-50	ADG-P-1600-31
AC Input	Voltage	3Φ3W + G 380Vac ± 15% (Option: 200V/208V/480V)
	Frequency	47-63Hz
	Power factor	≥ 0.9 at maximum power
DC Output	Output Voltage	400V	500V	640V	800V	1000V	1600V
	Output Current (30kW)	75A	60A	47A	38A	30A	18A
	Output Current (40kW)	100A	80A	62A	50A	40A	25A
	Output Current (50kW)	125A	100A	78A	63A	50A	31A
	Line Regulation	< 0.1%
	Load Regulation	< 0.032%	< 0.14%	< 0.132%	< 0.034%	< 0.02%	< 0.05%
Measurement	Transient Response ^*2	≤ 4-12ms
	Voltage Accuracy	0.5% F.S.
	Voltage Resolution	0.1V
	Current Accuracy	0.5% F.S.
	Current Resolution	0.1A
Protection	Type	Vin OVP, Vin UVP, OVP, OCP, OTP
	OVP Range	5% - 115% from front panel
	OCP Range	5% - 115% from front panel
General	Efficiency	≥ 90% at maximum power
	Remote Interface	RS-485 (Opt. GPIB / RS-232 / Analog)
	Operational Temperature	0°C - 40°C
	Storage Temperature	-20°C - 70°C
	Isolation	Input to Enclosure: 2000VAC
	Dimension (H×W×D)	380V Input : 1050 x 600 x 800 (mm) / 41.4 x 23.7 x 31.5(inch) 220/200V/480V Input : 1385 x 600 x 800 (mm) 54.5 x 23.7 x 31.5(inch)
	Weight	380V Input : approx. 187 kg / 413 lbs 200V/208V/480V Input : approx. 367 kg / 810 lbs

75kW	ADG-P-40-1875	ADG-P-60-1250	ADG-P-100-750	ADG-P-320-234	ADG-P-640-117	ADG-P-1000-75	ADG-P-1600-47
100kW	ADG-P-40-2500	ADG-P-60-1666	ADG-P-100-1000	ADG-P-320-312	ADG-P-640-156	ADG-P-1000-100	ADG-P-1600-63
AC Input	Voltage	3Φ3W + G 380Vac ± 15% (Option : 200V/208V/480V)
	Frequency	47 - 63Hz
	Power factor	≥ 90% at maximum power
DC Output	Output Voltage	40V	60V	100V	320V	640V	1000V	1600V
	Output Current (75kW)	1875A	1250A	750A	234A	117A	75A	47A
	Output Current (100kW)	2500A	1666A	1000A	312A	156A	100A	63A
	Line Regulation	< 0.1%
	Load Regulation	< 0.1%	< 0.15%	< 0.15%	< 0.08%	< 0.08%	< 0.1%	< 0.08%
Measurement	Transient Response ^*2	≤ 10-20ms
	Voltage Accuracy	0.5% F.S.
	Voltage Resolution	0.1V
	Current Accuracy	0.5% F.S.
	Current Resolution	0.1A
Protection	Type	Vin OVP, Vin UVP, OVP, OCP, OTP
	OVP Range	5% - 115% from front panel
	OCP Range	5% - 115% from front panel
General	Efficiency	≥ 87% at maximum power			≥ 90% at maximum power
	Remote Interface	RS-485 (Opt. GPIB / RS-232/Analog)
	Operational Temperature	0°C - 40°C
	Storage Temperature	-20°C - 70°C
	Isolation	Input to Enclosure: 2000VAC
	Dimension (H×W×D)	380V Input : 1520 x 600 x 800 (mm) / 59.9 x 23.7 x 31.5 (inch) 200V/208V/480V Input : 2020 x 600 x 800 (mm) / 79.6 x 23.7 x 31.5 (inch)
	Weight	380V Input : approx. 294kg / 648.3 lbs 200V/208V/480V Input : approx. 574kg / 1265.7 lbs
