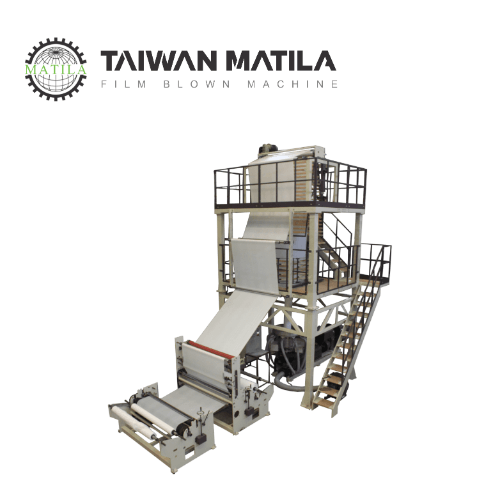

CM Serial HDPE High Speed Mono Layer Film Blowing Machine

Clasificación: Monolayer Film Blowing Machine

Matila

País: China

Teléfono: +086-0512-58622012

Persona de contacto: 盧俊企先生

Consulta Ahora

Model	Roller width (mm)	Film width (mm)	Film output (kg/hr)	Main motor (Kw)	Die head (mm)	Cooling blower (Kw)	Take up motor (Kw)
CM-H HDPE blown film machine (HDPE/MDPE+LLDPE/EVA),HD:0.006-0.008MM
CM-H25	300	100–200	5–12	3.7	30	0.75	0.37
CM-H35	500	200–400	15–28	7.5	50	1.5	0.37
CM-H45	650	300–550	25–45	15	70	2.2	0.37
CM-H55	800	400–700	35–70	22	90	3.7	0.75
CM-H65	1100	600–950	50–90	37	120	3.7	0.75
CM-H80	1500	800–1350	80–160	55	170	5.5	1.5
CM-H100	1800	1000–1600	120–220	75	200	7.5	1.5

The film thickness & film output will be different depending on material and film specification

The specification & designs are subject to change without notice for improvement

Application: T-shirt bags, shopping bags, garbage bags, mattress cover, laundry bags etc
Suitable material: HDPE / MDPE / HDPE+LLDPE

Features

Direct connection design gearbox : Compact & Space-Saving Design, High Rigidity & Minimal Backlash, Superior Concentricity & Reduced Vibration
Servo motor : High Efficiency & Low Heat Generation, High Speed with Constant Torque, Smooth Low-Speed Operation
Barrel & Screw : L/D ratio 30:1, PTA bi-metal process
Die head by material resin types to maintain effective shear rates during extrusion.
Air rings for precise thickness, fast cooling, and stable bubble
Thermo control : PID & SCR both for Extruder & Extruder die
Optional PLC & HMI
End-to-End In-house Production
We offer customized solutions to meet your needs.
