The Innovator Dedicates to Plastic Bag Making Machine

ABOUT PLAS ALLIANCE

Plas Alliance Ltd. was established on July 1988 and mainly manufactures various types of bag making machine, sale more than 60 countries in the world. Regarding our products, customers have good comment on our service and qualities.

THE INNOVATOR OF PLASTIC BAG MAKING MACHINE

We are keeping for "customer’s satisfaction" and "timeless service" to be our highest principle of enterprise operations.
For fulfilling customer’s need and increasing best profit for customer, we offer various types of bag making machine and customized product.  We provide uniquely designed to each client’s specific circumstance need.

QUALITY ASSURANCE

The high quality of our bag making machine has been thought to satisfy all of our customers because of the constant researching and innovation.  We are the professional for bag making machine.  For further meaning, integrate operator, employees and enterprise all of three's cooperation just like the three continuous circles in our company logo.  We hope deliver our PAL enthusiasm service to the hearts of customers.



PE Shopping Bag Series PL32SWPFA-V

Automatic High Speed Side Seal Bag Making Machine for Soft Loop, Patch Handle, Die Cut, Poly Draw Handle Bags.

FEATURES

The soft loop handle and poly draw handle drive

1. At loop handle film unwinder, the film was cut into narrow strip film, then top fold to loop handle before seal it.
2. The poly draw film was pre-slit to narrow strip film by slitting machine, by passing through the inserting device, it is
    formed inside the bags.

Photo-cell control & pre-warming station

1. this series of machine uses Erwin Sick Photocell for precise control of print image to the side weld.
2. Additional stabilization of the side weld in the area of the bottom gusset and top gusset by the pre-sealing station for four
    layers film.

The patch handle device

1. The reel of patch handle film is fed and cut by hot cutting knife, then attached automatically welding on top center position of
    handle bags.

Handle punch

1. The pneumatically controlled handle punch is equipped with knife type cutter which is designed for long life and easily
    changeable.

T-Shirt Bag Series PL32TLFA-V-9

Multi Layers Bottom Seal Bag Making MAchine with Die Cutter

FEATURES

1. A two-layer.four-line production capability makes for a very high output potential.A single DLFA gives double the output of
    other machines.
2. A high production speed of up to 300 bags per minute for HDPE bags of the 0.01~0.015 thickness.
3. A specially-designed cooling blade can fully prevent melt plastic sticking.
4. Suitable for plain and T-shirt bags.
5. This bottom-sealing unit is built with a punch-out device for fully automatic operations.

T-Shirt Bag with Jumbo Roll Series

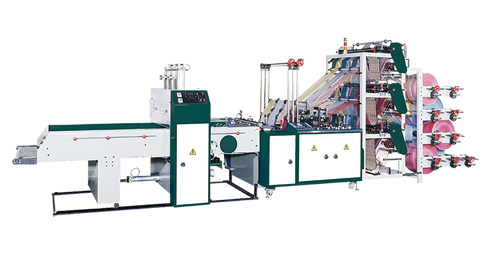

Servo Motor Drive 3-Line T-shirt Bag Making Machine with Die Cutter, Hot Cutting Type, Heat Slitter and Post Gusseter

FEATURES

1. Longitudinal hot slitting knife equipped with electronic temperature control,the temperature can be adjusted according to film
    thickness,suitable for both HDPE & LDPE.
2. Multiple post-gusseter motorized by AC motor,the gusseting depth and edge angle can be adjusted accurately and easily.
