Sistema de reciclaje instantáneo

Clasificación: Sistema automático

YANN BANG ELECTRICAL MACHINERY CO., LTD.

País: Taiwán

Teléfono: ENGLISH: 886-4-2271-0000 | 中文：886-4-22716999

Fax: 886-4-2271-1988

Persona de contacto: Bunny Tsai

Consulta Ahora

El IRS es la mejor solución para el sistema automático de reciclaje de plástico al integrar granuladores, secadores de tolva y cargadores de vacío. Es adecuado para el reciclaje de películas, copos de PET y otros desechos de plástico para ahorrar el costo de los materiales vírgenes.

En el pasado, los operadores tiraban los bebederos o material de desecho en pequeñas cantidades o esperaban a que los recogieran en gran cantidad para reutilizarlos. Sin embargo, el polvo atrapado por la electricidad estática puede volverse demasiado malo para ser reutilizado por un tiempo. Eso no solo ocupa tu espacio sino que también te cuesta tiempo para clasificar, romper la naturaleza plástica y regenerar en un proceso tan largo.

El "sistema de reciclaje instantáneo" de Yann Bang utiliza una trituradora que granula inmediatamente los bebederos, el material de desecho o el producto NG en pequeños pedazos como material reciclado que se mezcla con material virgen mediante una válvula proporcional en la proporción correcta.

El proceso de reciclaje le ayuda a reducir los gastos de material sin afectar la calidad. El tamaño pequeño con bajo nivel de ruido y bajo consumo de energía es excelente para un funcionamiento prolongado.

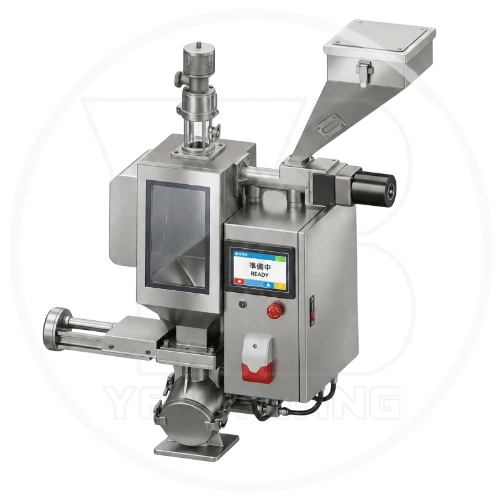

Un pequeño sistema de reciclaje instantáneo periférico automático para su máquina de moldeo se combina con cuatro equipos individuales: trituradora, cargador de vacío automático, secador de tolva y válvula proporcional. También se puede utilizar con un robot o cinta transportadora. La función principal es mezclar los residuos granulados directamente de la máquina de moldeo por inyección y el material virgen en una proporción adecuada. Benefíciese con menos material y contaminación para sus producciones estándar. El sistema de reciclaje instantáneo automático puede reciclar, transportar y secar el material granulado secuencialmente.

Menos ruido y menos polvo para mantener limpia su área de trabajo.
Tamaño compacto, peso ligero y fácil de mover.
Proporción de mezcla precisa para una buena calidad.
El reciclaje instantáneo proporciona una productividad altamente eficiente y ahorra costos de material.

Mighty Crusher (YBC)

Our crushers are applied to all types of plastic, rubber, resin, and other materials.
Large feed inlet can break most kinds of plastic or rubber scrap and waste material easily, bulk feeding more efficient, save labor cost and time.
The main structure is made of high quality steel. It is fracture-proof.
High-quality blades which increase motor’s efficiencies.
Able to open widely for better vision.
With patented(CHINA PAT. ZL200820119883.8) design,once the crusher required for maintenance or repair, the crusher will completely stop as the safety device is on and it is very safe for the operator to open the crusher to clean, check or maintain.

Instant Crusher (YBCS)

An instant recycling system can help you to cost down by recycling the sprues, waste material or defective products. YANN BANG Instant Crusher is also good to granulate long and thick material.
This series is perfect to locate next to a molding machine to recycle immediately.
With patented(CHINA PAT. ZL200820119883.8) design, once the crusher required for maintenance or repair, the crusher will completely stop as the safety device is on and it is very safe for the operator to open the crusher to clean, check or maintain.

Low-Speed Silence Crusher (YBCSS)

This series are suitable to granulate a small amount of sprues, waste material or defective products located next to your molding machine.
With low-speed and silence design, it can break evenly and quietly with less dust. Easy to clean and operate with multi safety device.
With patented(CHINA PAT. ZL200820119883.8) design, once the crusher required for maintenance or repair, the crusher will completely stop as the safety device is on and it is very safe for the operator to open the crusher to clean, check or maintain.

The unique air valve structure design stops dust from entering the cylinder of the unit and thus reduces waste.

Can mix or feed one kind of resin only if required.

The controller is fitted with digital readout (PV-A-D Series) and setting for the mixing cycles which gives a high rate of accuracy. It is easy to set and be set in the range of 0-9.9 seconds.

Transparent cleaning cover design for quick cleaning and easy changing materials.

Individual controller for convenient operation.

1. Energy-Efficient Hopper Dryer (G series)

Awarded patents in Germany, Taiwan and China, the advanced technology recycles internal heat and faster heating. That saves your energy over 30% and extend equipment life time. Work with a dehumidifier can save more!

The temperature inside hopper increases quickly for better drying and shorten above 30% of drying hour. Simultaneously HEI can separate dust and oil for better quality. An energy-efficient device can save energy and improve working environment for you.

2. Stainless Hopper Dryer For Optics

‧ The perfect dry capacity is special for optics and electronics use.

‧ Unique design is dust-free and clean-free. Stainless and polish one-unit hopper is compact and light weight to install on the molding machine directly.

‧ To see the material level through a sight glass is to make working more efficient.

3. Hopper Dryer (HD/IHD/DHD)

‧ HD Series

Rapid heating.

Constant temperature control.

‧ IHD Series

Special insulated design.

Energy saving.

Save against burns.

‧ DHD Series

Insulated design.

Dust-free, clean free.

The standard DHD model is equipped with timer(T), EGO overheat protector(P),and patented magnetic stand (NSD)

Floor Mounted Auto Vacuum Loader

The separated design of a blower and a suction hopper with mighty horsepower is suitable for long distance conveying. The flexible combination of one blower with one suction hopper up to four suction hoppers can help you to save space and equipment investment cost. That also keeps your resin away the pollution and extend suction points easily for future need.

TA series

Easy use by a quiet and powerful induction motor. The motor cabinet can be placed on the floor for convenient operation and the suction hopper on the hopper dryer for easy installation.

TB series

Use the same commutator motor as the BC series, and separate motor cabinet and suction hopper design as the TA and TC series. Combine the advantages of the hopper mounted and floor mounted loaders.

TC series

The blowers are belt-driven that are the best choice for silent operation.

Patented Optional Parts
Vortex Cyclone (VC): Works with any auto loaders to stop the regrinded resin from discharging to the surrounding area.
Filter Set: s optional equipment from YANN BANG is perfect for dust-free of indoor working place. To do the filter routine maintenance is so easy without dirtying your hands and place. Unload the filter set without opening the cover until move to the please you want to clean.
Auto Dust Cleaner: Saves your time and labor. No need to clean your filter anymore. The Auto Dust Cleaner is designed to install upon the filter of the loader. Set the timer and it cleans your filter routinely.

Suction Hopper

Standard Series (HS)

By negative pressure principle, convey the raw material into the hopper controlled by the limited switch.

Glass series (GS)

Fitted with a proximity switch to make the accurate control and the material supply easily observed. It can be mounted directly onto the molding machine and gives the operator a clear view of the loading through the sight glass.

Stainless Series for Optics (HS-S/GS-S)

The stainless suction hopper which is internal buffed is dust-free and best choice for optics industry.

Booster Series (HS-E)

Flexible Hopper design to increase or decrease your hourly capacity is economic and user-friendly.

Dust-Free Filter Hopper for optics (HDF)

During conveying, dust and resin are separated. To compare with other air filter, it can increase 300% efficiency to de-dust. Stainless design with transparent tempered glass gives a clear view of the loading, and it is perfect for optics need of dust-free.

Powder Series (HSP)

Working with a floor-type auto loader (TAE series) .It is the best choice for powder user. Available for powder, pellet or flake resin. Both new and recycled material are no problem. Special design to prevent dust and keep workshop clean. No longer worry about the powder jam at the bottom.

Sent the recycled material instantly to the discharge bin by compressed air.
Unique design avoids pollution for good quality.
The filter can keep your working place clean.
The discharge outlet with multiple designs is great for your different uses.
The feeder and base can adjust the output of raw resin or recycling material.
To speed up the air inside pipe by 4-6kgf/cm² compressed air conveys the recycled material to the discharge bin.
